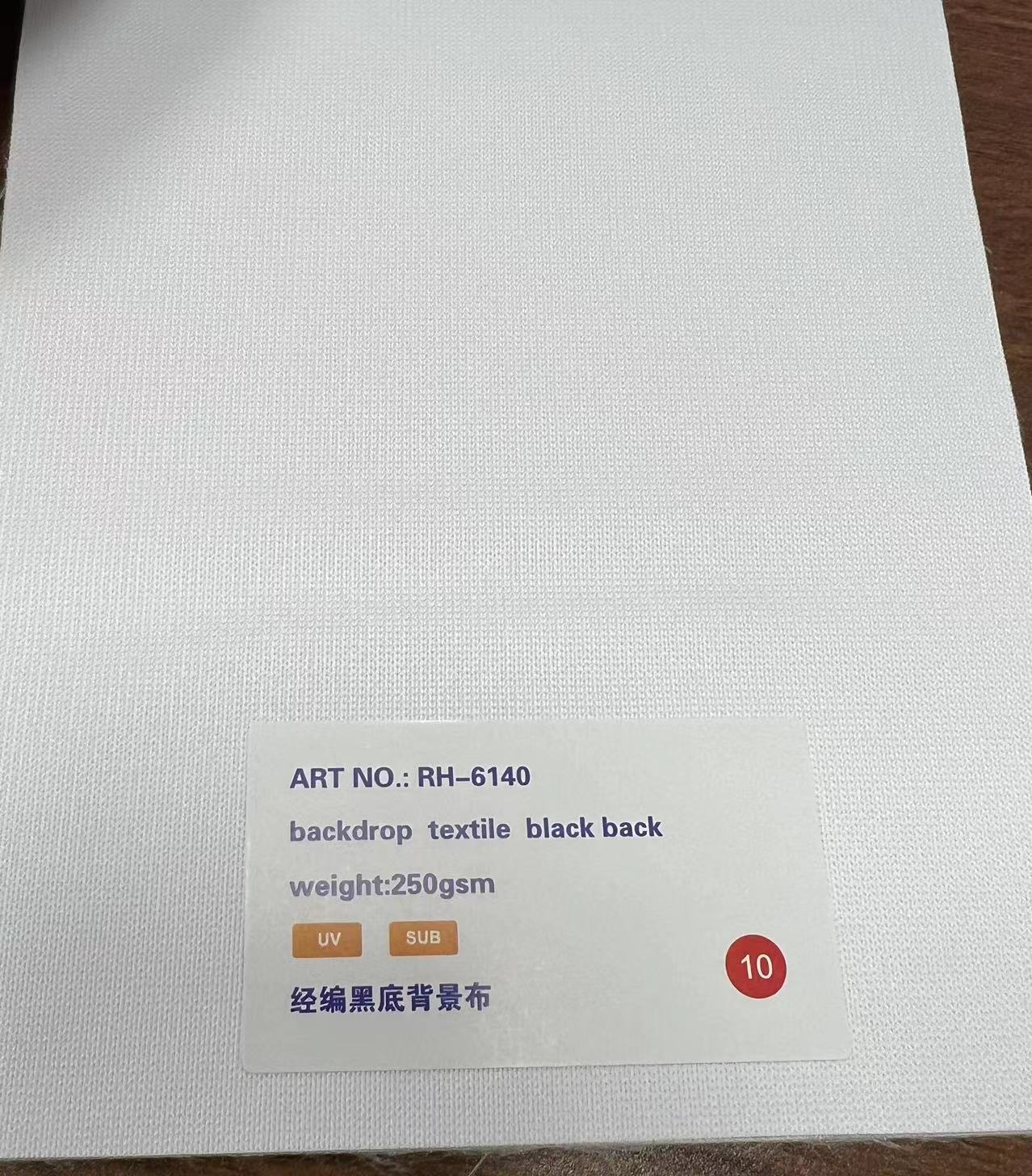

Art.NO.:RH-6140
Origin country: China
DESCRIPTION
Weight: 270gsm
100% warp-knitted polyester fabric with white surface & black resin coated backing, offers full opacity
Slight stretch feature makes it perfect as frame and pop-up materials
Perfect with UV inks, also workable with Latex, SUB.
Standard size roll: 1.6/2.6/3.2*100M.
Packing: hard tube. Core: 3inch.

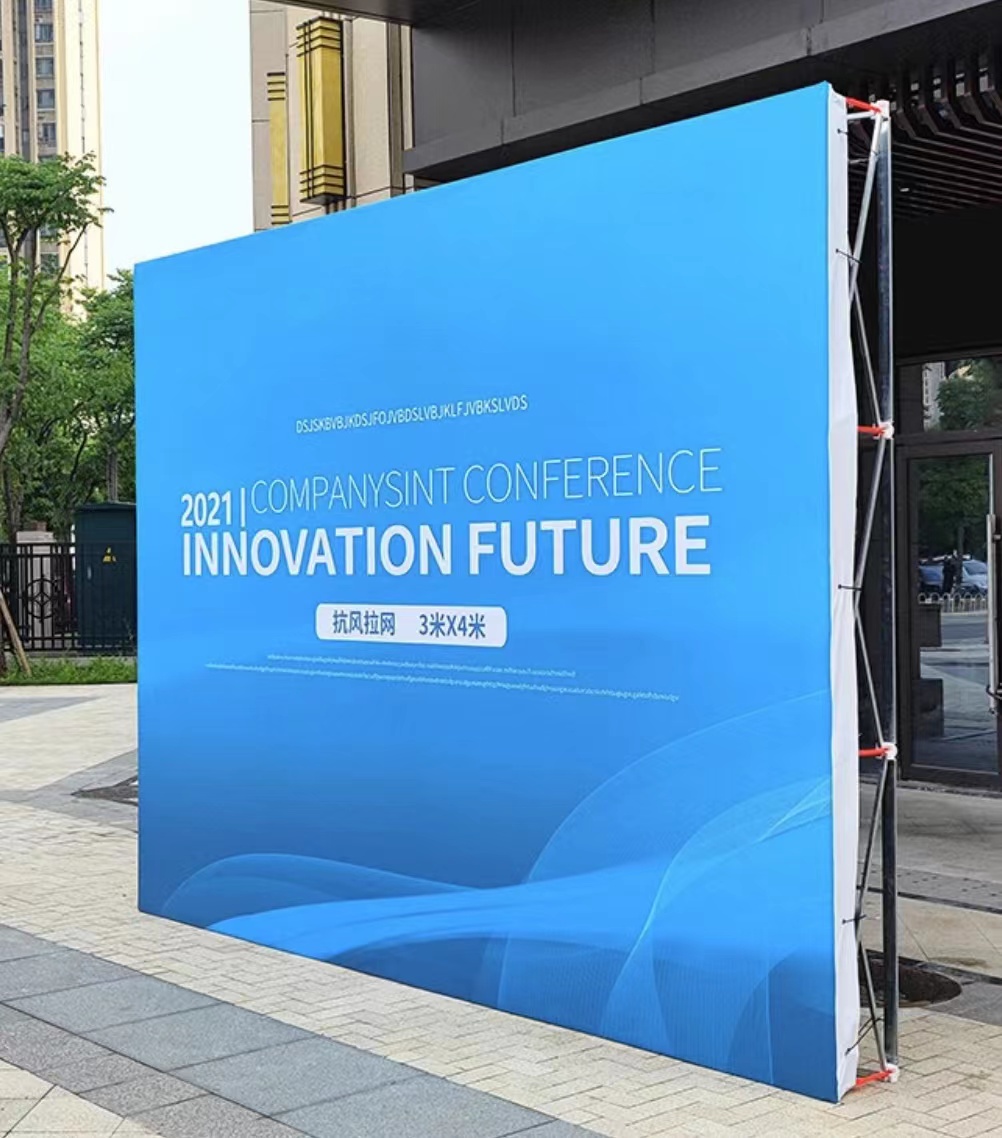

Application: ideal for pop-up & Frame materials……
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PROPERTIES | TEST METHOD | METRIC | IMPERIAL |
Total Weight | DIN EN ISO 2286-2, ASTM D751 | 270 g/sqm | 7.9 oz/sq.yd |
Base Fabric Weave Method | DIN 60001, ASTM N/A | D7641 100%polyester Warp-knitted | 100%polyester |
Shrinkage | 210 ℃, 30s | ≤3% | EN13501-1 |
Shielding Rate | ANSI PH2.19, ISO 5/2 | 100% |
Flame Resistance | DIN 4102-1-B1, NFPA 701 Test1, EN13501-1 |
Recommend Fixation Temperature | N/A | 190℃-210℃, 1-2min |
Yellowing Temperature | SUPRKC REX-C400, 30s | ≥210℃ |
Width Available | DIN EN ISO 3759, ASTM D751-2006 | Max 320cm | 126" |
Standard Length | DIN EN ISO 3759, ASTM D751-2006 | 50m | 55yds |
NOTE:
It is normal that the weight of most products will have an average fluctuation of 5%. All above information shall only used as a guide; buyers shall independently test and determine the products suitability. The mentioned data are average of test result and should not be used for the purpose of lawsuit or warranty.
| code | ART NO. | Product Name | TECHNICAL DATA | AVAILABLE SIZE |
| weight and thickness | suitable for printer | WIDTH(M) | LENGTH(M) |
| 1 | RH-6136 | Environmentally friendly display textile white back | weight:320gsm | ECO -SOLVENT /UV | 1.6/2.6/3.2 | 50 |
| 2 | RH-6138 | Environmentally friendly display textile gray back | weight:320gsm | ECO -SOLVENT /UV | 1.6/2.6/3.2 | 50 |
| 3 | RH-6139 | Environmentally friendly double side printing display textile | weight:350gsm | ECO -SOLVENT /UV | 1.6/2.6/3.2 | 50 |
| 4 | RH-6140 | latex backdrop textile black back | weight:270gsm | UV/LATEX /SUB | 1.6/2.6/3.2 | 50 |
| 5 | RH-6145 | tent fabric | weight:270gsm | ECO -SOLVENT /UV/SUB | 1.6/2.6/3.2 | 50 |
