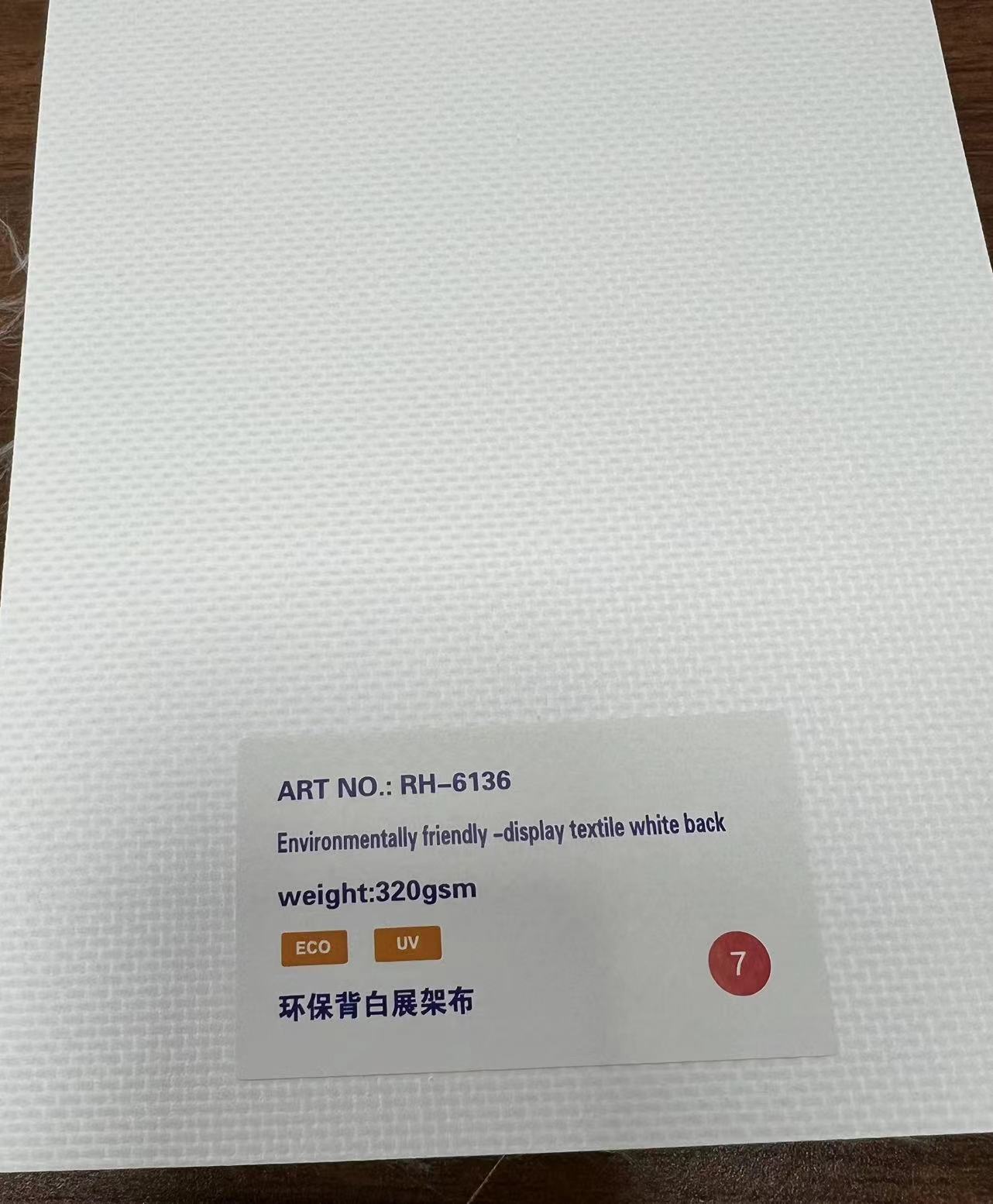

Art.NO.:RH-6136
Origin country: China
DESCRIPTION
Weight: 320gsm
100% PVC free, tight structure, smooth hand feel
PA-coated, 1000x1000, 20x20 base fabric
Anti-curling, excellent consistency on both sides
Can be used as indoor hanging banner, roll up, display…..
Perfect with UV inks, also workable with Sol, Eco-sol, Latex.
Standard size roll: 1.6/2.6/3.2*50M.
Packing: hard tube. Core: 3inch.
Application: ideal for display stand ………
-----------------------------------------------------------------------------------------------------------------------------------
PROPERTIES | TEST METHOD | METRIC | IMPERIAL |
Total Weight | DIN EN ISO 2286-2, ASTM D751 | 320 g/sq.m | 9.4 oz/sq.yd |
Base Fabric | DIN 60001, ASTM D7641 | Polyester | Polyester |
Yarn Dtex | DIN EN ISO 2060, ASTM D 1907 | 1100x1100 dtex | 1000x1000denier |
denierShielding Rate | ANSI PH2.19, ISO 5/2 | 85% |
Tensile Strength | DIN EN ISO 1421 | 2290x2180 N/5cm | 263x251 lbs/inch |
Tear Strength | DIN 53363 | 730 x690 N | 164x155 lbs |
Flame Resistance | DIN 4102-1-B1, NFPA 701 Test1 | DIN 4102-1-B1, NFPA 701 Test1 |
Width Available | DIN EN ISO 3759, ASTM D751-2006 | Max 500cm | 197" |
Standard Length | DIN EN ISO 3759, ASTM D751-2006 | 50m | 55yds |
NOTE: It is normal that the weight of most products will have an average fluctuation of 5%. All above information shall only used as a guide; buyers shall independently test and determine the products suitability. The mentioned data are average of test result and should not be used for the purpose of lawsuit or warranty.
| code | ART NO. | Product Name | TECHNICAL DATA | AVAILABLE SIZE |
| weight and thickness | suitable for printer | WIDTH(M) | LENGTH(M) |
| 1 | RH-6136 | Environmentally friendly display textile white back | weight:320gsm | ECO -SOLVENT /UV | 1.6/2.6/3.2 | 50 |
| 2 | RH-6138 | Environmentally friendly display textile gray back | weight:320gsm | ECO -SOLVENT /UV | 1.6/2.6/3.2 | 50 |
| 3 | RH-6139 | Environmentally friendly double side printing display textile | weight:350gsm | ECO -SOLVENT /UV | 1.6/2.6/3.2 | 50 |
| 4 | RH-6140 | latex backdrop textile black back | weight:250gsm | UV/LATEX /SUB | 1.6/2.6/3.2 | 50 |
| 5 | RH-6145 | tent fabric | weight:270gsm | ECO -SOLVENT /UV/SUB | 1.6/2.6/3.2 | 50 |
