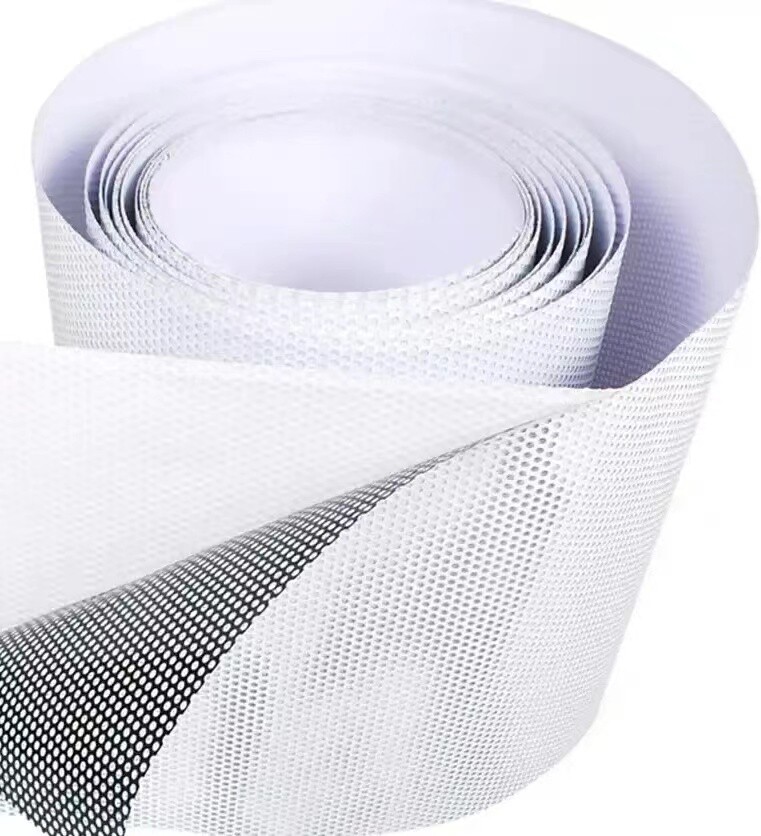

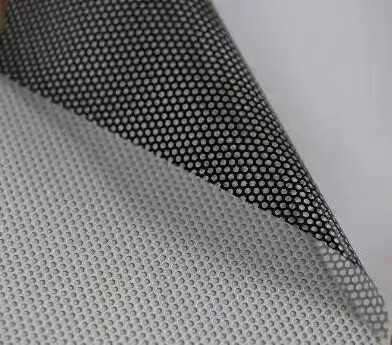

One way vision vinyl standard 140um/140gsm

Product advantages and uses:

Ideal for transparent vitrine advertising.
From the glass of means of transportation to the glass curtain wall and partition of indoor glass, one way vision film can perfectly display the personalized design, decoration and commercial publicity ideas, making it a high-quality media for personalized and brand publicity.

Art.NO.: RH-6301


Description:

Film:      140micron black & white PVC film

Adhesive: transparent adhesive

Liner:    140gsm white PEK paper with one side PE & Silicon coating

Width:   0.98/1.06/ 1.27/1.37/1.52m length roll: 50m.

Packing:    paper carton ,  core: 3 inch.

Features:

1. One side visual, sun-shade and privacy protection; Hole size 1.60mm, perforation 40%;

2. Stable ink absorption and excellent dimensional stability.

Applications:

1.Applicable to glass surface, also applicable to transparent acrylic, PVC, PET transparent panels;

2.Suitable for various solvent ink and Eco-solvent ink.

Technical Data

Test Items

units

Test method

Average value

Thickness  PVC

micron

GB/T6672-2001

140±10

Liner Weight

g/m²

GB4669-1995

140±10

Weight -finished product

g/m²

GB4669-1995

280±20

24h180°peel

N/25mm

FTM 1

4

Dimensional stability MD

mm

FTM 14

≤1.5

Dimensional stability CD

mm

FTM 14

≤1.0

Tensile strength MD

N/25 mm

GB/T1040.1-2006

≥25

Tensile strength CD

N/25 mm

GB/T1040.1-2006

≥20

Construction temperature


20±10

Applicable temperature


-20 ~ +70


 Art.No.

 hole size(mm)

 transparent rate

 holes space

thickness of pvc film

weight of release paper

adhesive type

RH-6300

1.6

40%

2.4

120um

140gsm

black glue/removable

RH-6301

1.6

40%

2.4

140um

140gsm

black glue/removable

RH-6302

1.6

40%

2.4

140um

160gsm

black glue/removable

RH-6303

1.6

40%

2.4

160um

160gsm

black glue/removable
